Product Information

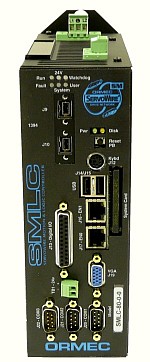

SMLC Multi-Axis Models 30, 80 and 160

ORMEC's ServoWire Motion & Logic Controller (SMLC) for multiaxis motion and PLC functions

ORMEC’s ServoWire Motion & Logic Controller (SMLC) is the center of a complete machine control solution to meet your motion, I/O and networking needs. This platform combines ORMEC's motion engine with high performance PLC capability and world class open standard software. Focus your engineering efforts on solving your application instead of integrating control components.

Key Features

SMLC Controllers

The SMLC features high performance computing capability combined with a true real-time operating system (RTOS). Industry standard Intel 32-bit processors run the QNX RTOS and provide cost effective, robust computing power for demanding multi-axis motion and I/O control applications. SMLCs are used in a wide range of industrial and aerospace markets including packaging, converting, labeling, web & material handling, medical, pharmaceutical, as well as general assembly and winding.

Machine I/O

The SMLC provides a multi-tiered, flexible approach to meet machine I/O requirements. It has the ability to interface high-speed drive-based I/O for microsecond position capture and single servo update response to sensor signals. Sub-millisecond programmable limit switch outputs are tightly coupled to the motion control.

General purpose I/O options are fully supported using WAGO 750 Series Ethernet I/O as well as optional Profibus DP Master.  In either case, a wide variety of cost effective analog and digital I/O modules are  connected to and controlled by the SMLC.



The SMLC reduces system complexity and lowers total installed cost. Servos are daisy-chained and interface to the controller using a standard IEEE-1394b network interface and cabling.

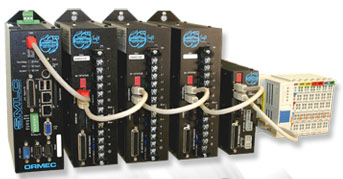

SMLC with drives

















ServoWire Drive Network

ORMEC’s AC brushless servo motors and ServoWire digital servo drives offer guaranteed performance with the SMLC. Maximum performance from a tightly integrated, pre-engineered package simplifies everything from system integration to maintenance.

Fully digital control offers compelling benefits—eliminating manual servo drive setup and providing real-time software access to all parameters. In an SMLC system, position, velocity and torque loops are closed by the digital signal processors (DSPs) in the ServoWire drives and are based on position commands sent from the SMLC. Velocity observer software eliminates the need for analog tachometers. Potentiometers are eliminated because gain and compensation parameters are set in software. All loop adjustments are automatically computed when a motor and its load inertia are specified in ServoWire Pro. This simplifies servo system tuning.

Specifications

General Specifications

  • Input Voltage: 115/230 VAC 1.0/0.5A (+15%, -20%), 50/60 Hz, single phase
  • Operating Temperature: 0 to 50C
  • Relative Humidity: 10 to 95% @ 40C (non-condensing)
  • Weight: Approx.3.1/ 3.5 lbs
  • Dimensions: 9.0 x 2.75” x 7.2” (228.6 x 69.9 x 182.9 mm), h x w x d for Model 30 & 80 or 9.0 x 4.25” x 7.2” (228.6 x 108 x 182.9 mm) for Model 160

Processor & Memory

  • Main Processor: Industry standard family of Intel 32-bit processors
  • DRAM: 128 Mbytes
  • Program Memory: 128 Mbytes (Removable Compact Flash)
  • Non-Volatile Memory: 32 Kbytes (battery backed)

Motion Control

  • All-digital control algorithms featuring velocity and acceleration feedforward for optimal performance
  • High-speed sensor inputs to initiate motion within one position command update
  • High-speed hardware position capture (<1 usec), ideal for use in high-speed registration applications
  • Software controlled position, speed and current (torque) limits
  • Drive fault protection circuits, watchdog timers and integrated diagnostics for fail-safe operation
  • Full 32-bit position count or modulo position in user units
  • SMLC Model 30 - 3 axes; SMLC Model 80 - 8 axes; SMLC Model 160 - 16 axes

Inputs/Outputs

  • SMLC I/O: 8 inputs, 8 outputs, 1 analog in, 1 analog out.
  • General I/O: 64 modules per WAGO 750 Series bus coupler, up to 512 I/O points connected via Ethernet (Modbus/TCP). Multiple bus couplers can be used for additional I/O.

Communications

  • Standard: Three RS-232 serial ports
  • Standard: Two Ethernet 10/100baseT ports with RJ45 connectors
  • Standard Protocols: Modbus/RTU slave, Modbus/TCP client & server, Ethernet/IP adapter
Documents

Documents

Related Products

Related Content

Software

To access the Software Library you must be logged in. If you do not have an account, click here to register; otherwise log in.

Part Numbers

The following is a list of valid part numbers for SMLCs

Version Compatibility

SMLC 30/80/160 Hardware version compatibility table
Hardware version Minimum SMLC firmware version
3.1 4.2.0
3.0 4.0.0
2.2* 3.7.0
2.1* 3.0.0
2.0* 2.6.0
1.x* 2.0.0


 *SMLC hardware version 2.x or older will not work with firmware v4.x or newer.
